What hydrostatic pressure actually is.
Every basement wall in the world is holding back water, or at least the potential for it. When the soil around your foundation is dry, the only force on the wall is the dry weight of the soil itself, which is manageable and predictable. When the soil saturates with rain or snowmelt, the water within that soil becomes a fluid system that exerts pressure in every direction, including horizontally against your foundation wall.
That pressure is what we call hydrostatic pressure. It's not a contractor invention or a sales scare term, it's a basic fluid mechanics principle that's been understood since the 1600s when Blaise Pascal worked it out. Every working civil engineer, every plumber, every basement waterproofer is reasoning about hydrostatic pressure whether they explicitly name it or not.
The math, P = ρgh, in English.
The full equation:
P = ρ · g · h
Where:
- P = pressure (in pounds per square foot or psf)
- ρ (rho) = density of the fluid. For water, ρ = 62.4 lb/ft³
- g = gravitational acceleration. We can fold this into the equation by working in weight units rather than mass units, simplifying the practical calculation.
- h = depth of the fluid in feet
For a basement footing 10 feet below grade in saturated soil:
P = 62.4 lb/ft³ × 10 ft ≈ 624 psf
That's 624 pounds of pressure on every square foot of your basement wall at footing depth. A typical 8-foot-tall basement wall with 30 linear feet on each side has roughly 960 square feet of total surface area. Multiply across the wall and you're looking at tens of thousands of pounds of total horizontal force trying to push water through your foundation.
Where it acts on your foundation.
Hydrostatic pressure increases linearly with depth. At the top of the basement wall (just below grade) the pressure is small, only a few inches of saturated soil above. At the bottom of the wall (at footing depth) the pressure is at its maximum.
What this means practically: the bottom of the wall and the wall-floor seam see the most force. Water finds the path of least resistance, and that path is almost always at the lowest point of the foundation, where the pressure is highest. That's why basement leaks almost never start at the top of the wall, they start at the cove joint and any crack or weak point near the footing.
If you wonder why water always shows up at the floor and never the upper wall, this is why. The pressure at the floor is roughly 10× the pressure at the top of the wall.
Why the cove joint is the weak point.
The cove joint is the seam where the basement floor slab meets the wall. It's not poured monolithically, the wall is poured first, the slab is poured later against the wall, and the joint between them is the single weakest mechanical connection in your entire foundation.
When hydrostatic pressure peaks at footing depth, it's acting on:
- The poured wall (relatively impermeable, but has hairline shrinkage cracks)
- The footing (concrete, but with the joint above it)
- The slab (concrete, but with the joint at its perimeter)
- The cove joint itself, a seam, not a poured connection, with no waterproof barrier between slab and wall
Water takes the easiest path. The cove joint is the easiest path. That's why “water along the edge of the basement floor” is the most common single complaint we see across 700+ Twin Cities installs. It's not a building defect, it's how every concrete basement is built. The fix isn't to seal the cove joint from the inside (water still pushes against the wall and finds the next-easiest path), the fix is to relieve the pressure at the source.
What actually relieves hydrostatic pressure.
Two things actually drop hydrostatic pressure on your foundation: (1) keep the surrounding soil dry, or (2) intercept the groundwater before it reaches the wall.
Surface water management (option 1)
Gutters, downspouts, grading, French drains. Anything that prevents rainwater and snowmelt from saturating the backfill ring around your foundation in the first place. This works on most Hennepin/Ramsey County basements because the soil is glacial till that drains slowly, keep water from getting into the backfill and the backfill stays dry-ish.
Interior drain tile (option 2)

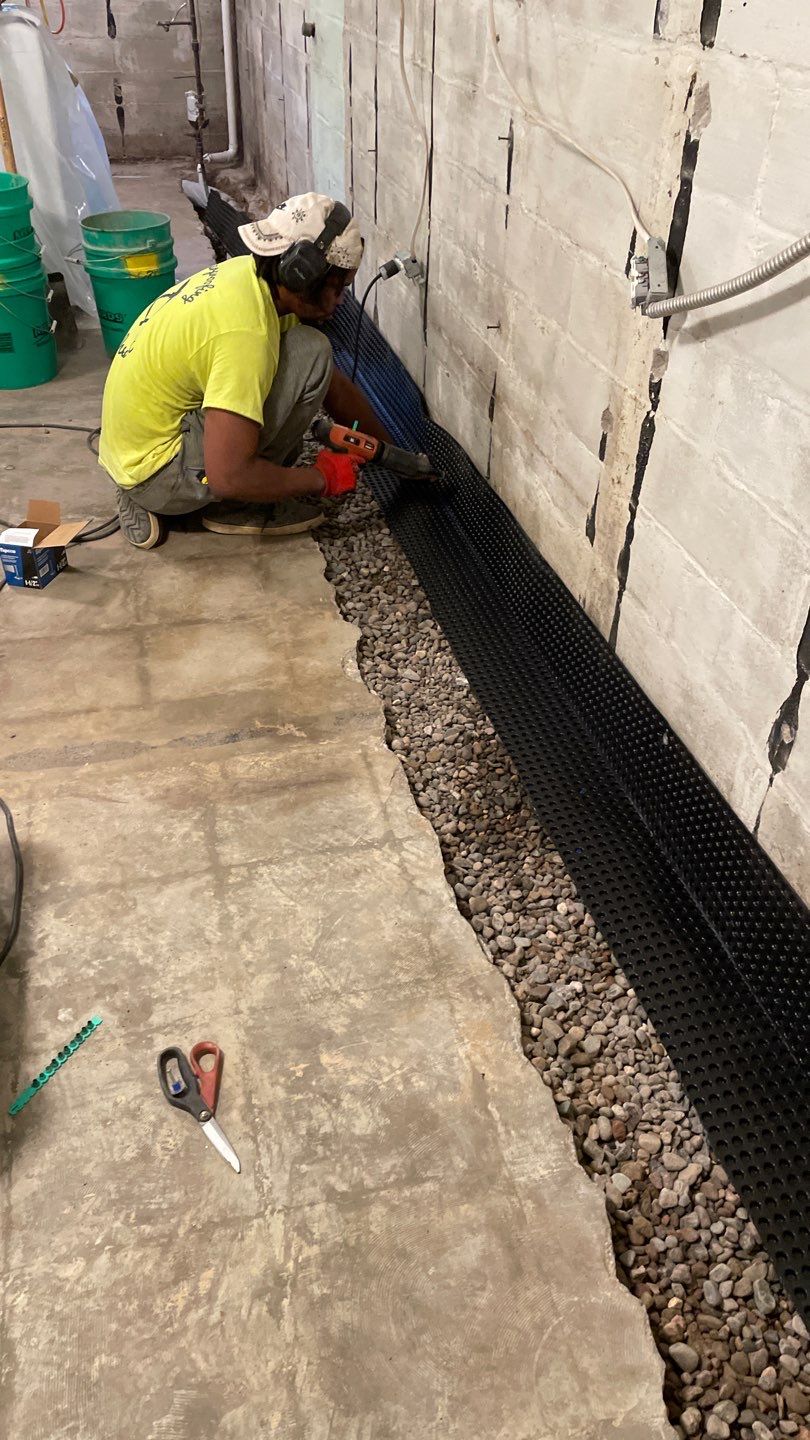

WPNE's qualifying interior drain-tile method uses 4-inch perforated corrugated pipe installed at the bottom of the footing without undermining it, in washed stone and routed to the specified sump system. The drained stone-and-pipe zone provides a lower-resistance collection path. When it matches the water source and has a reliable outlet, it can lower local water head in the treated area and reduce seepage at the floor-wall joint.
Perimeter channels and footing-depth pipe use different elevations and collection geometries. Their actual effect depends on the product, installation, water path, soil, foundation, sump, discharge, and treated footprint. Compare those facts rather than assuming every system in either category performs identically.
For a homeowner trying to understand what they're buying, ask: where does this assembly collect water, which observed paths is it designed to manage, where does that water discharge, and what exact area is covered in writing?
